Description

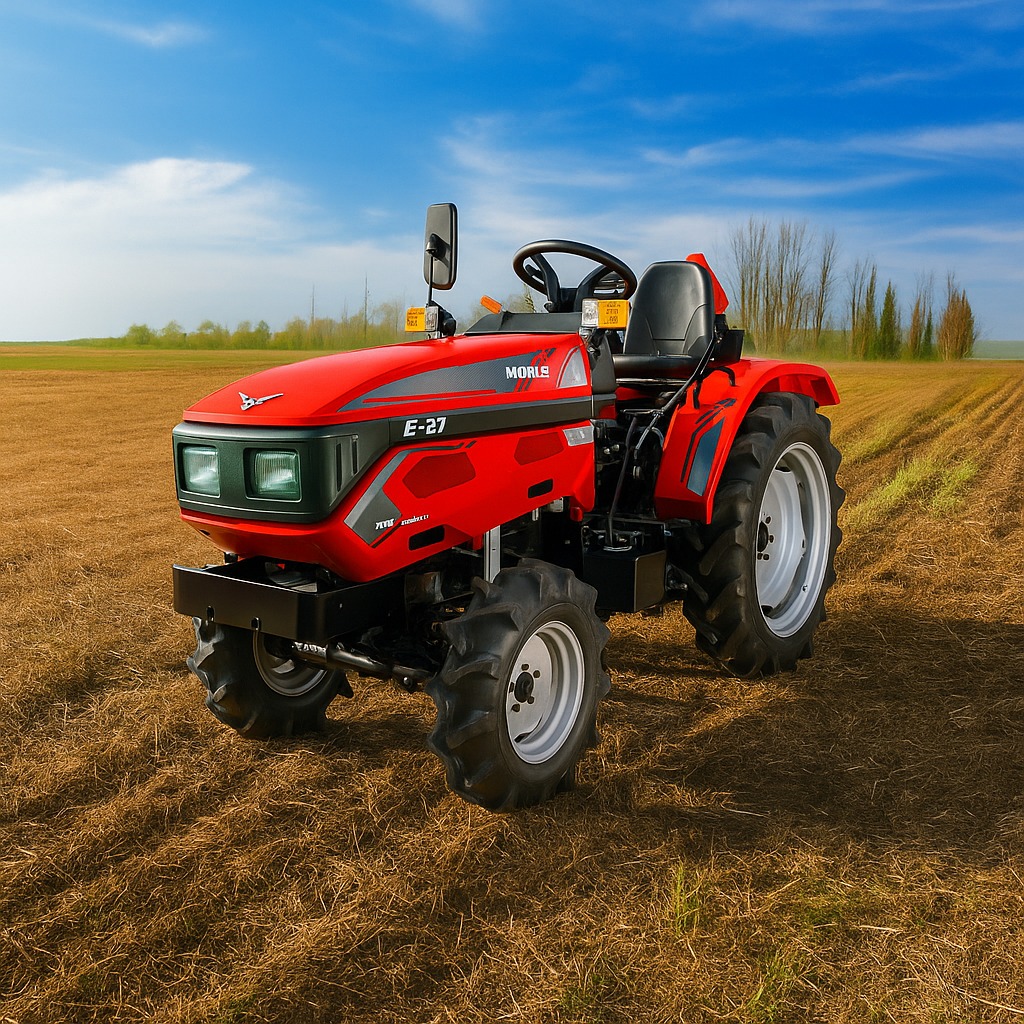

The PDF is a product brochure for the Montra Electric E-27, an electric tractor designed for smarter, cleaner, and more efficient farming. It highlights the tractor’s key benefits and provides detailed technical specifications.

⭐ Key Highlights

• 125 Years of Trust – From TI Clean Mobility (Murugappa Group).

• Low TCO (Total Cost of Ownership) – Lower running and maintenance costs.

• Less Vibration – Smooth operation for better operator comfort and health.

• No Pollution – Zero-emission electric tractor for clean farming.

• Ready to Roar – High performance and durability.

🚜 E-27 Technical Specifications

🔌 Powertrain

• Max Power: 27 hp

• Motor: PMSM (Permanent Magnet Synchronous Motor)

• Max Torque Equivalent: 90 Nm

• Variants: 2WD / 4WD

🔋 Battery & Charging

• Battery Type: LFP Prismatic cells

• Capacity: 22.37 kWh (304 Ah)

• Charging Voltage: 72V

• Runtime: Depends on application & soil conditions

• Max Charger Capacity: 6.3 kW

⚙️ Transmission

• Type: Side Shift

• Gears: 8 Forward + 2 Reverse

🌀 PTO (Power Take-Off)

• Max PTO Power: 22.16 hp

• PTO Mode: Toggle Type Dual Speed

• PTO Speeds: 540 & 1000 rpm

💪 Hydraulics

• Lifting Capacity: 720 kg

🛞 Tyres

• Front Tyres:

  • 5.25×14 (2WD)

  • 6×12 (4WD)

• Rear Tyres:

  • 8.3×24 (2WD & 4WD)

• Type: Agricultural tyres with tube
